Processing Example

1-13-10 Higashi Rokugo,
Ota-ku, Tokyo 144-0046,
Japan

info@shinei-tecno.co.jp

Click on the image to see a larger image.

New arrival

image	material	Processing diameter	pitch	Processing depth	The number of processing
	Carbide	φ50μm	100μm	350μm	25 holes
	Glass	φ0.3mm		60mm aspect ratio 200 times

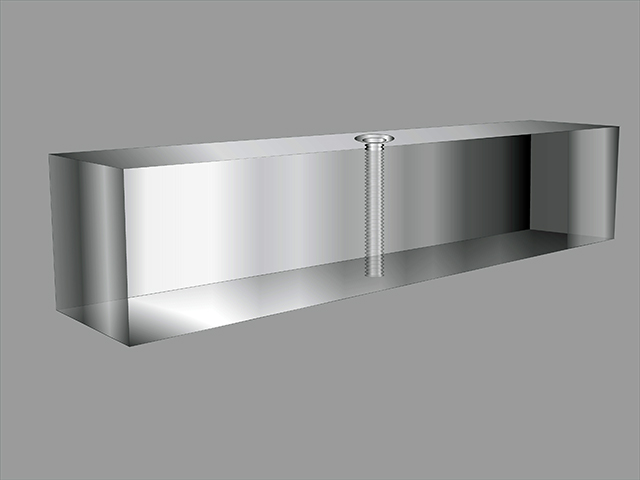

	Quartz glass Titanium, etc.	M1.0

Metal (drilling)

image	material	Processing diameter	pitch	Processing depth	The number of processing

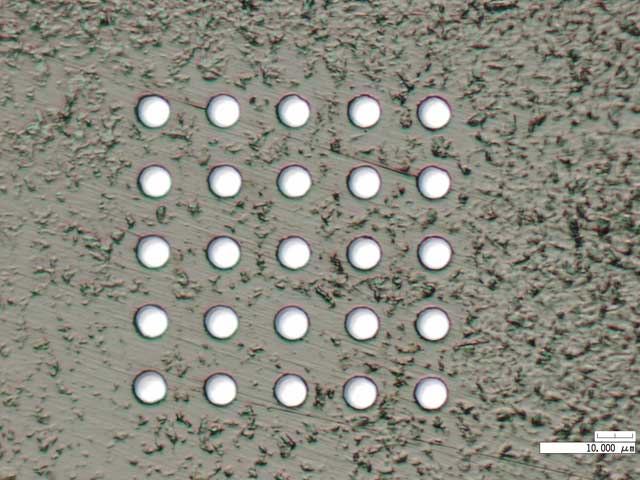

	Aluminum (A5052)	φ３μm	５μm	12μm	25 holes

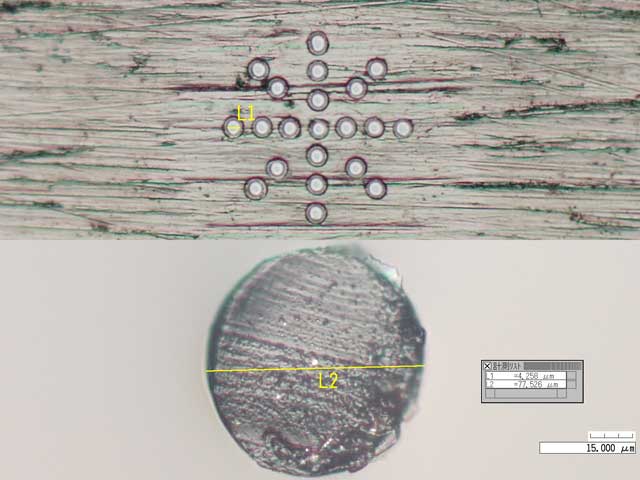

	Aluminum (A5052)	φ5μm	10μm	10μm	21 holes

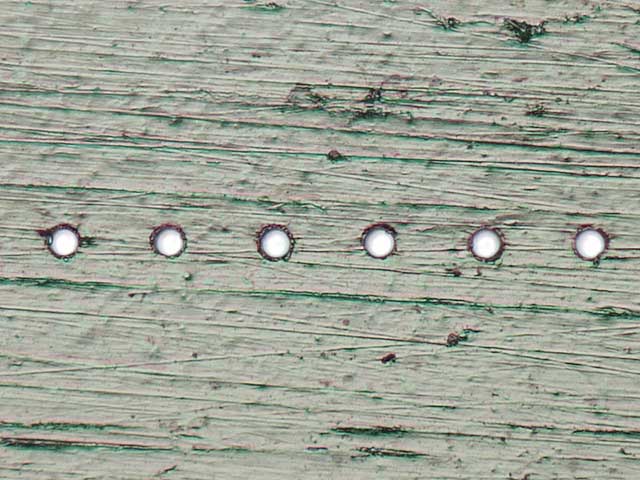

	Aluminum (A5052)	φ8μm	30μm	30μm	100 holes

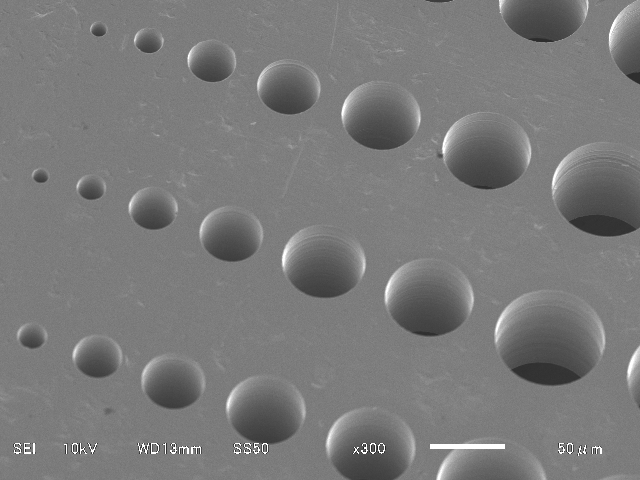

	SUS304	φ10～100μm		Processing depth 10μm＝50μm 20μm～100μm＝100μm
	SUS316L	φ10μm	20μm	50μm	25 holes

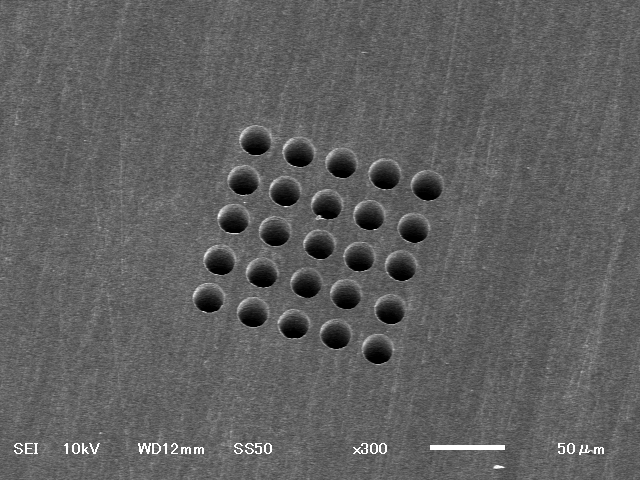

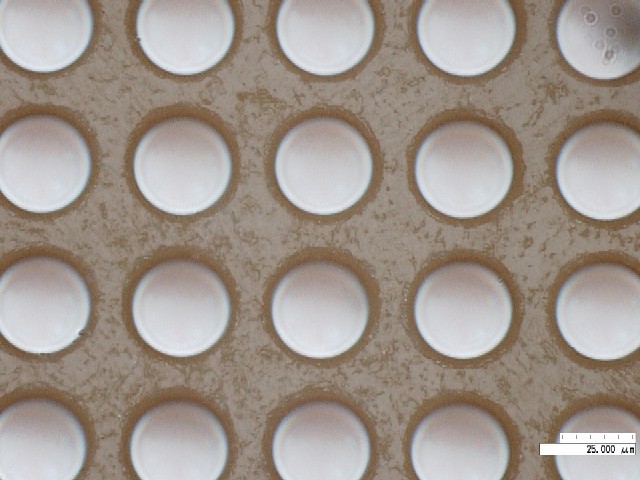

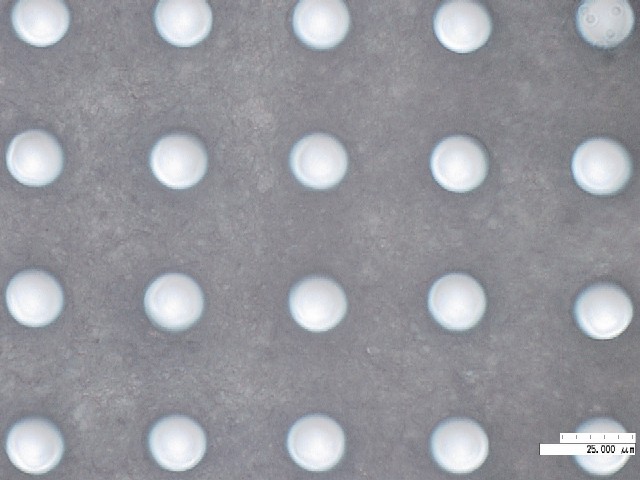

	titanium	φ20μm	30μm	50μm	25 holes

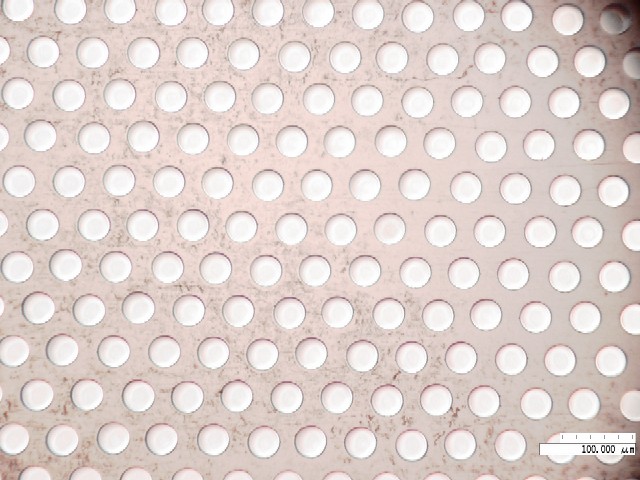

	SUS304	φ30μm	50μm	150μm	100 holes

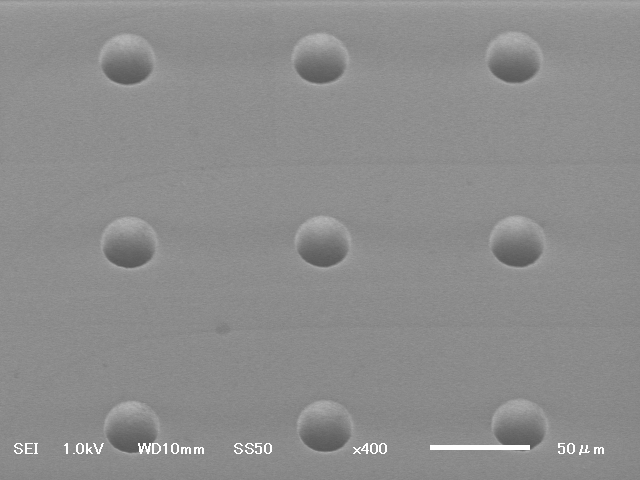

	nickel	φ30μm	100μm	50μm	25 holes
	tantalum	φ30μm	100μm
	titanium	φ50μm	80μm	100μm	1000 holes
	Aluminum (A5052)	φ50μm＆φ100μm	Thickness：400μm		17,000 holes

Back to page top

Metal(grooving)

image	material	Processing diameter	pitch	Processing depth	The number of processing

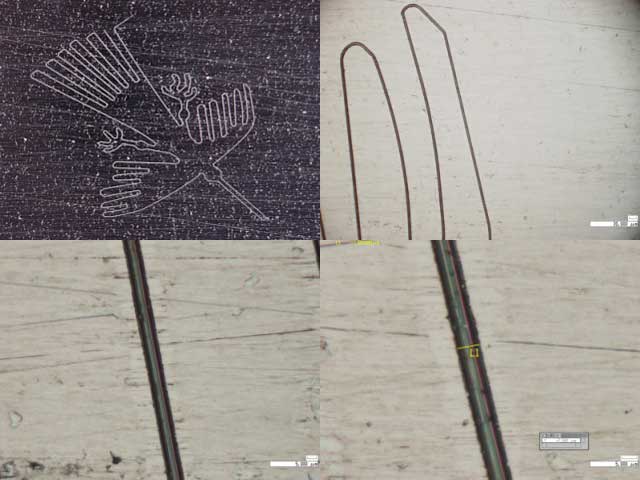

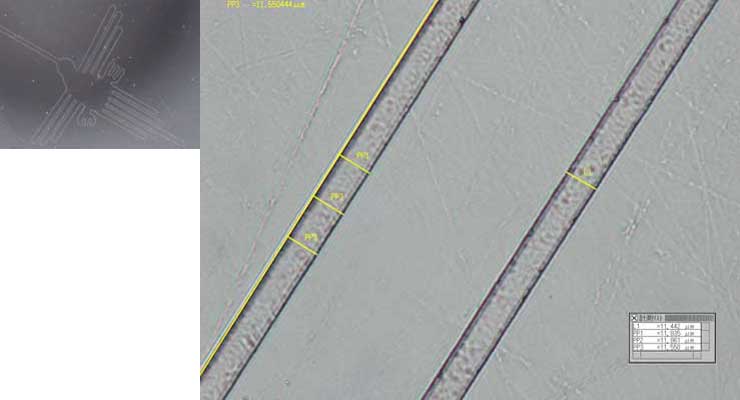

	SUS304	8μm groove

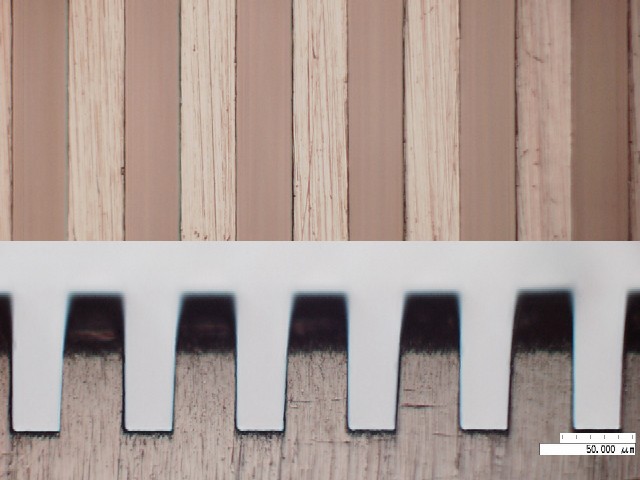

	SUS303	40μm (groove width))	80μm	100μm	10 (number of grooves)

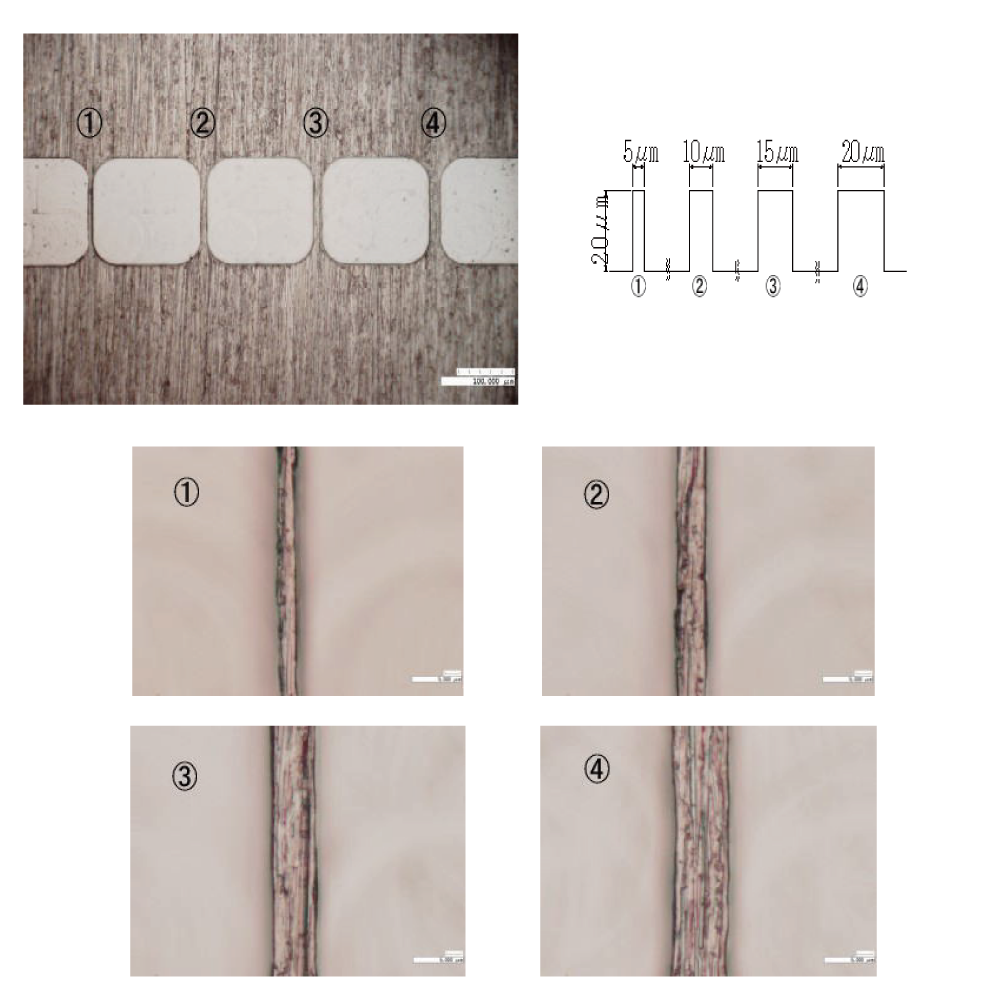

	Aluminum (A5052)	Rib thickness: 5μm, 10μm, 15μm, 20μm		Height: 20μm each

Back to page top

Resin(hole processing)

image	material	Processing diameter	pitch	Processing depth	The number of processing

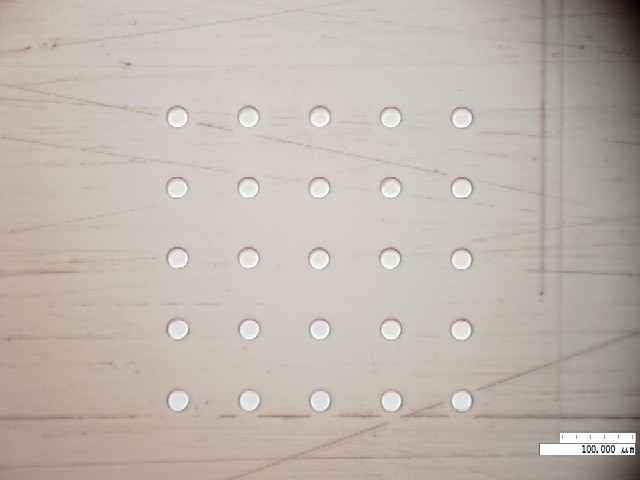

	Polyimide	φ10μm	50μm	75μm	25 holes

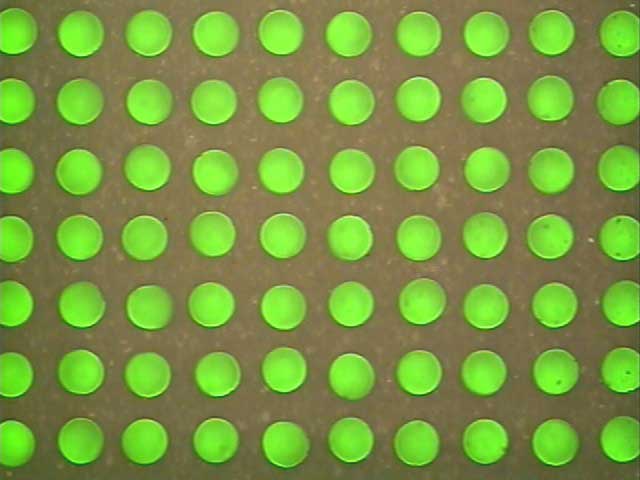

	Top fine	φ30μm	40μm	200μm	49 holes
	Upimol SA101	φ35μm	50μm	250μm	49 holes

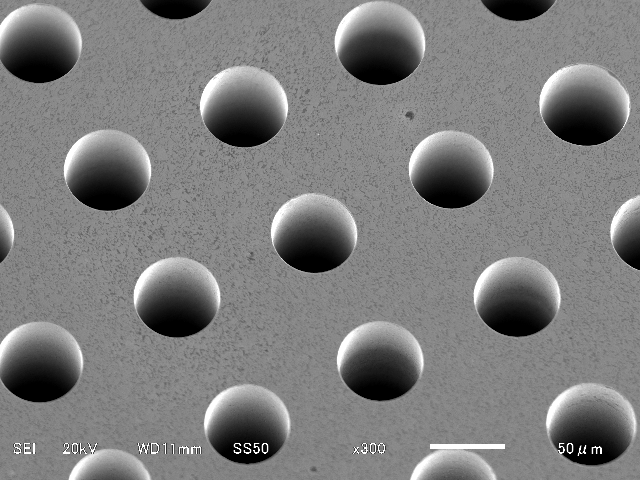

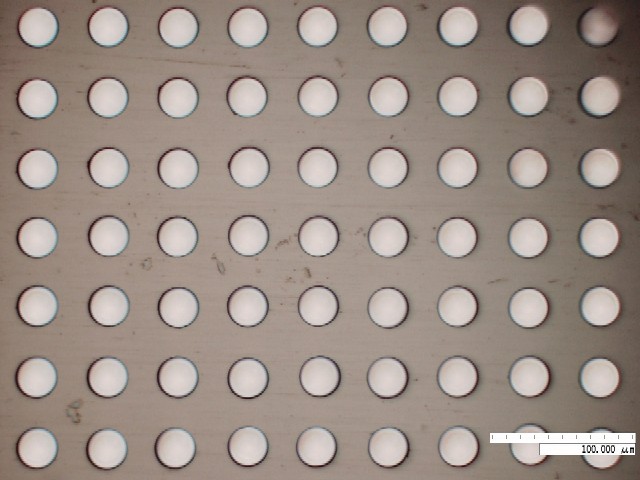

	Upimol SA101	φ55μm	70μm	250μm	49 holes
	Top fine	φ55μm	70μm	250μm	49 holes

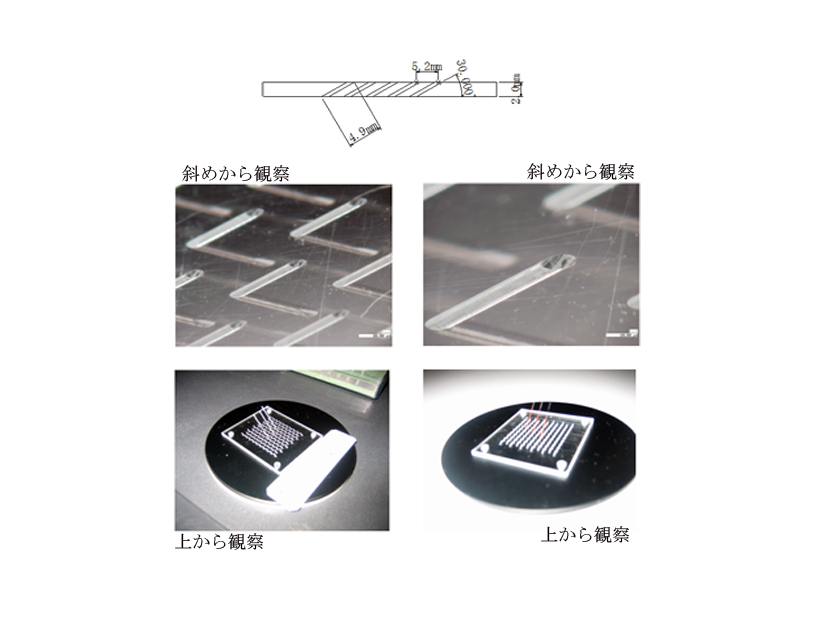

	Acrylic oblique hole processing	φ500μm	5200μm	4900μm	105 holes

Back to page top

Resin(grooving)

image	material	Processing diameter	pitch	Processing depth	The number of processing
	acrylic	10 μm groove		10μm

Machinable ceramic

image	material	Processing diameter	pitch	Processing depth	The number of processing
	Macerite HSP	φ20μm	50μm	100μm	100 holes
	Macerite HSP	φ30μm	50μm	150μm	100 holes
	McCall	φ55μm	80μm	500μm	100 holes

Back to page top

Brittle material(drilling)

image	material	Processing diameter	pitch	Processing depth	The number of processing

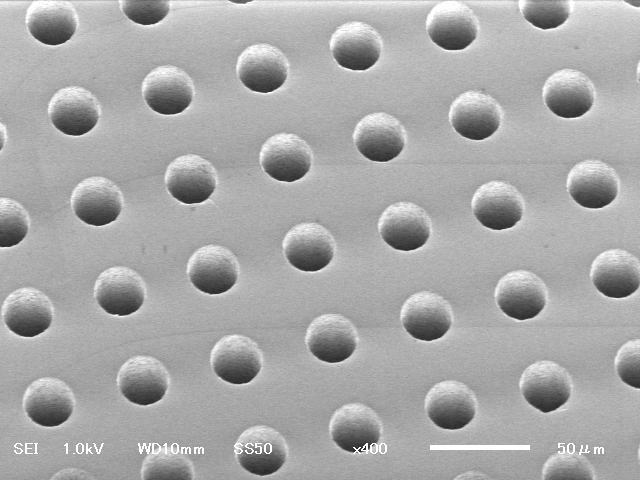

	Quartz glass	φ25μm	50μm	150μm	1024 holes
	Quartz glass	φ30μm	100μm	200μm	1000 holes

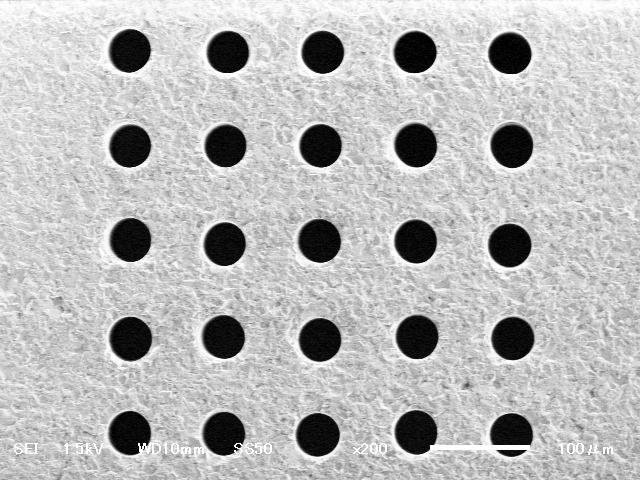

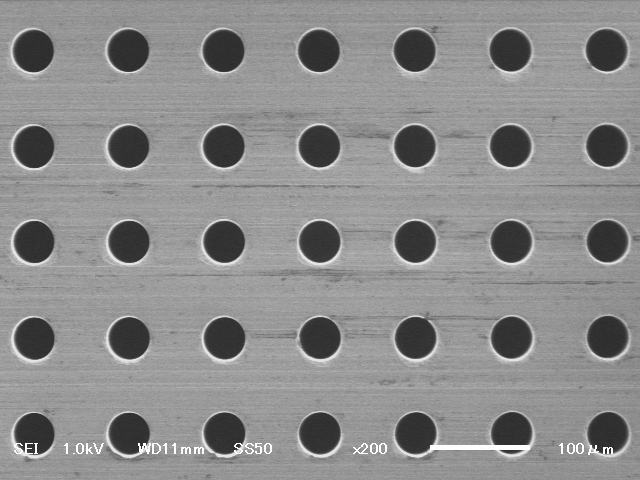

	Alumina 99.5%	φ50μm	100μm	250μm	25 holes
	Zirconia	φ50μm	100μm	250μm	49 holes

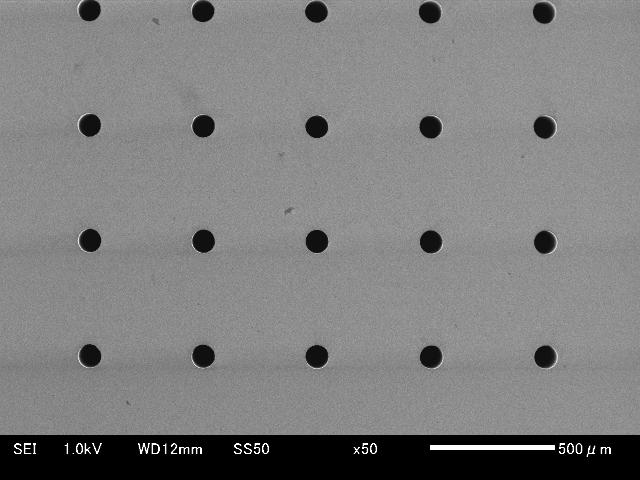

	Zirconia	φ100μm	500μm	500μm	1000 holes

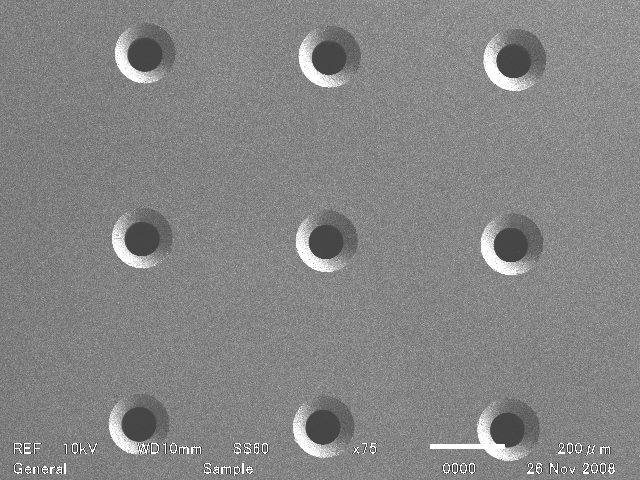

	silicon	φ100μm	150μm	250μm	25 holes

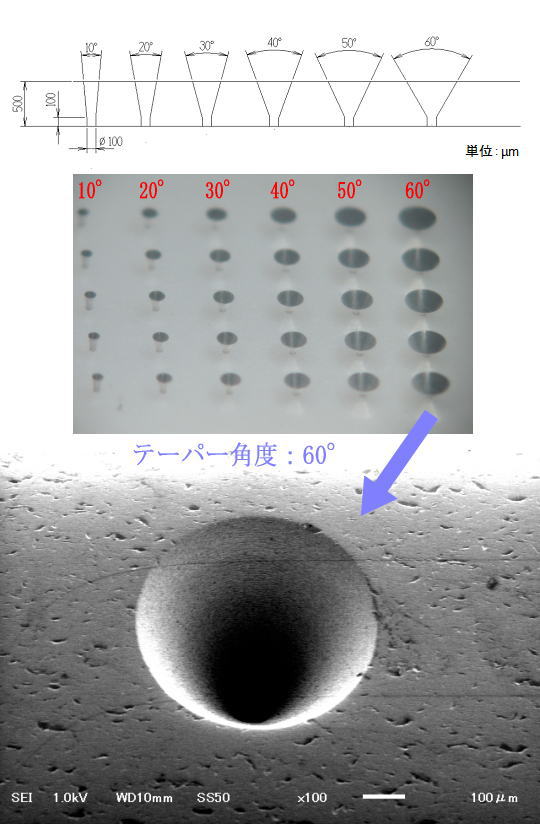

	Quartz glass	Taper angle: 10 ° ~ 60 °		Taper tip diameter: φ100μm

Back to page top

Brittle material(grooving)

image	material	Processing diameter	pitch	Processing depth	The number of processing

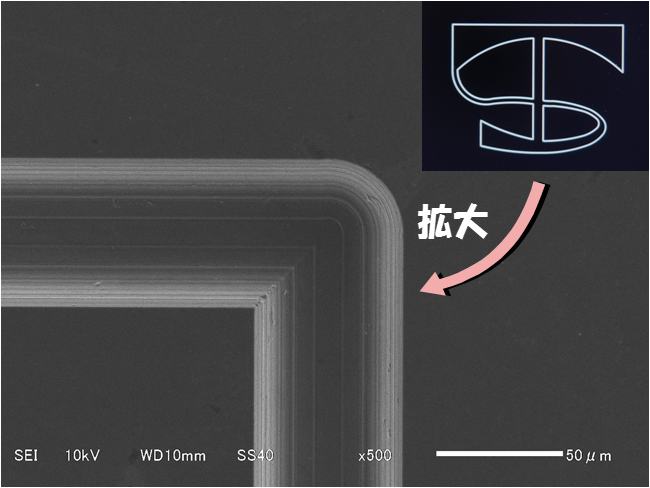

	silicon	Groove width: 50μm		Groove depth：50μm

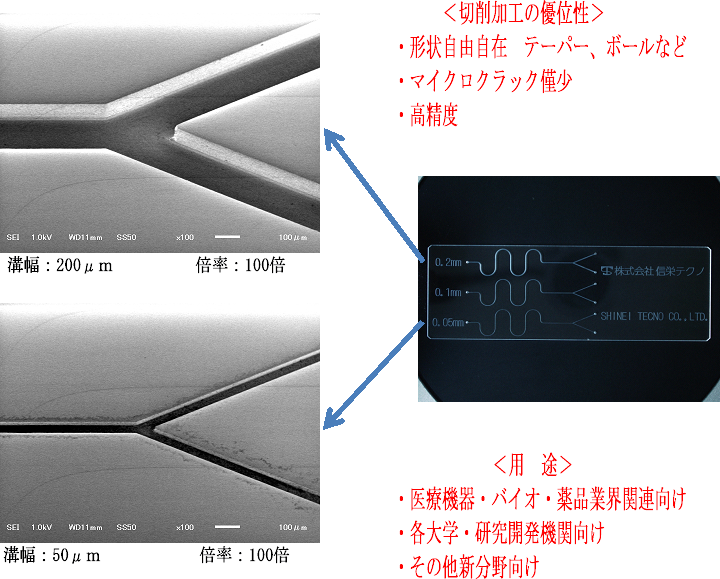

	Quartz glass	Groove width：50μm　100μm　200μm		Groove depth：50μm　100μm　200μm

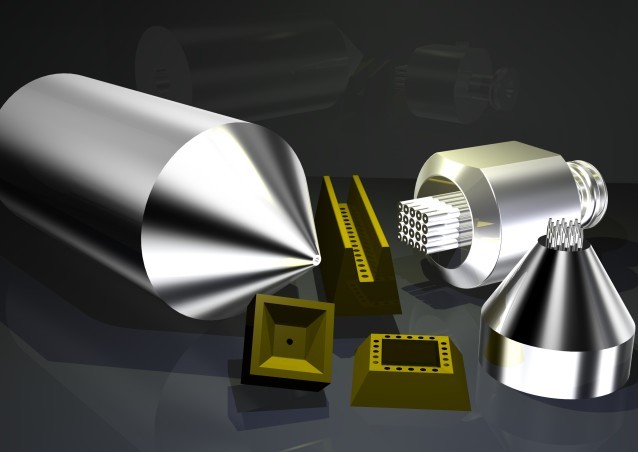

nozzle

image	material	Processing diameter	pitch	Processing depth	The number of processing
	SUS / Vespel / Others	φ0.04 to φ0.1 etc.

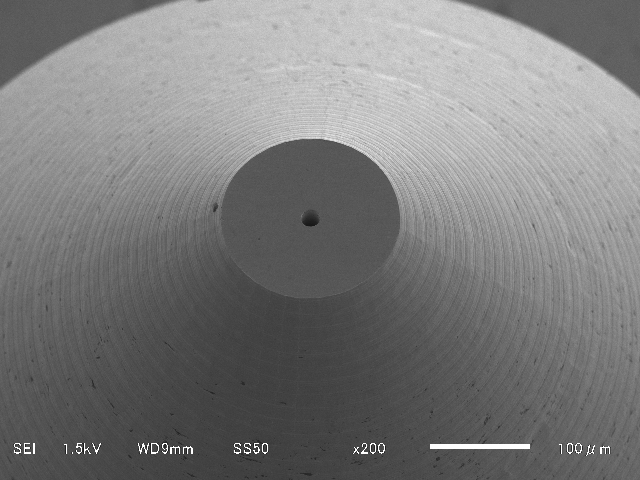

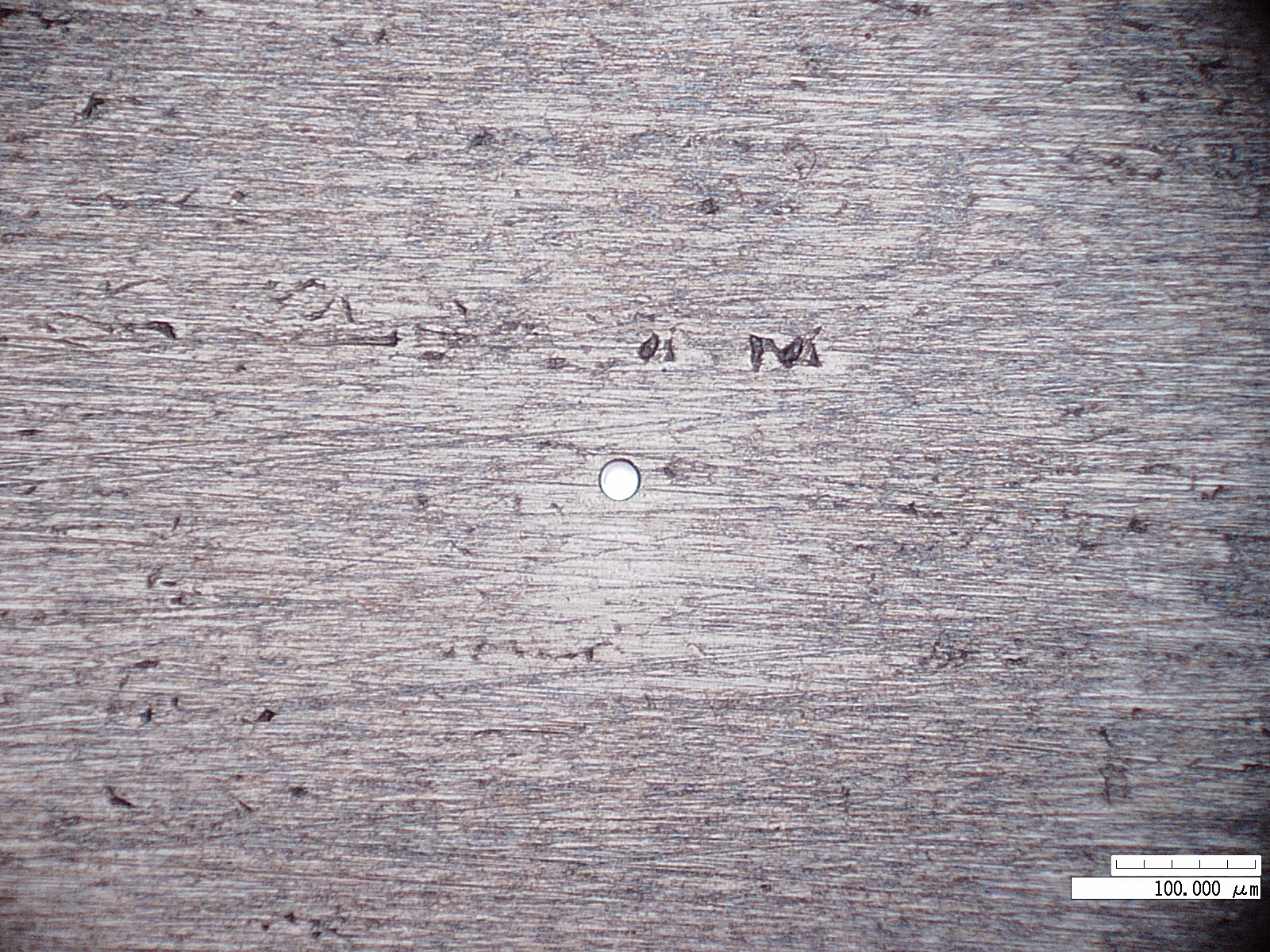

	SUS303	φ20μm

Others

image	material	Processing diameter	pitch	Processing depth	The number of processing

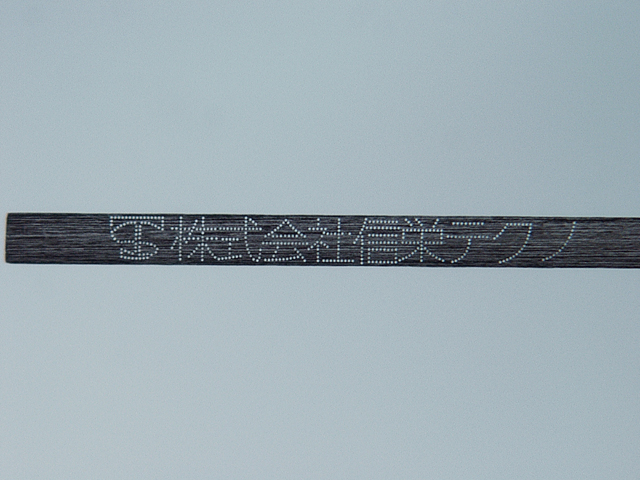

	0.5mm mechanical pencil lead	φ30μm			500 holes

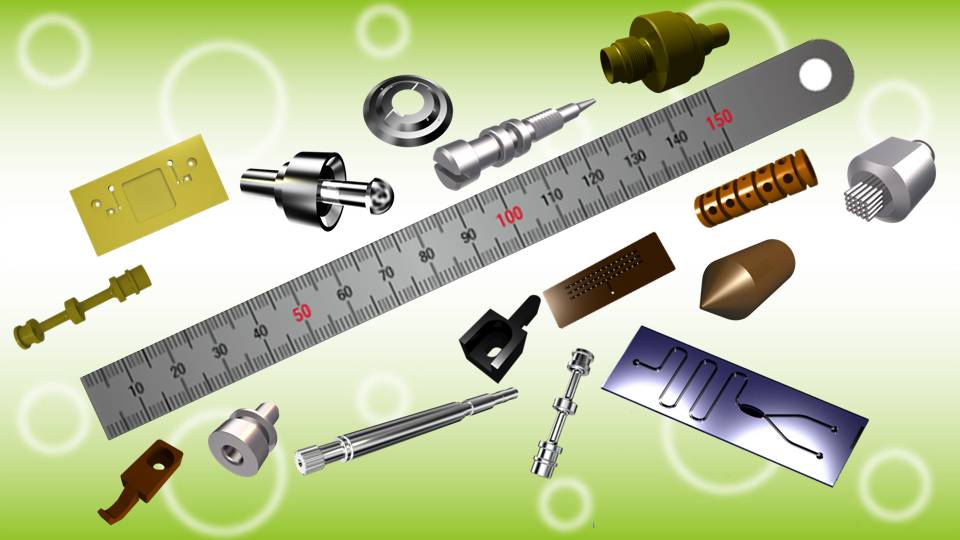

	Prototype / sample product

Back to page top
